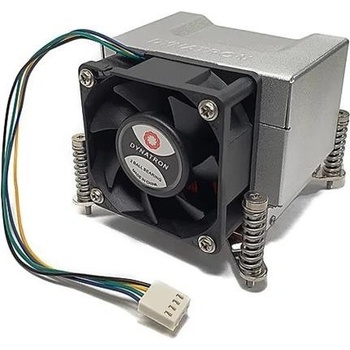

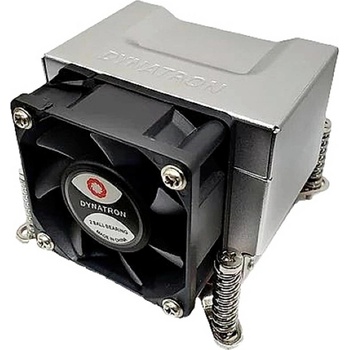

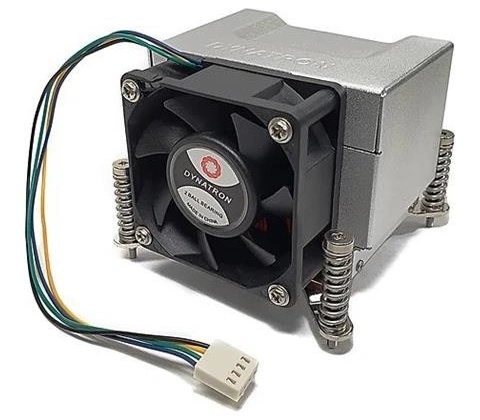

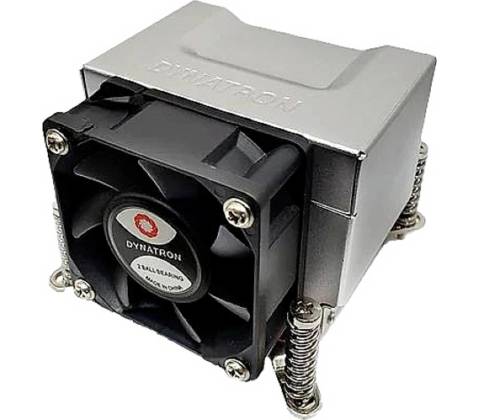

Dynatron Q5

CPU Support

Intel Core 12th -15th Gen

CPU Socket

LGA 1851/1700

Screw Type

M3

Installation Torque 5-7 in-lb

Weight 515.2g

Material

Copper Base & Aluminum Fins with Heat Pipe embedded

Solution 2U Server and Up

Dimensions 90.7 x 85.0 x 65.1 mm

Fan Dimension 60 x 60 x 25 mm

Rated Voltage 12V

Bearing 2 Ball Bearing

Speed

• At Duty Cycle 0~20%: 1600± 200 RPM
• At Duty Cycle 50%: 4000± 10% RPM
• At Duty Cycle 100%: 8000 RPM

Power

• At Duty Cycle 0~20%: 1.20 W
• At Duty Cycle 50%: 2.28 W
• At Duty Cycle 100%: 7.20 W

Air Flow

• At Duty Cycle 0~20%: 9.28 CFM
• At Duty Cycle 50%: 23.21 CFM
• At Duty Cycle 100%: 46.41 CFM

Air Pressure

• At Duty Cycle 0~20%: 0.76 mm-H2O
• At Duty Cycle 50%: 4.76 mm-H2O
• At Duty Cycle 100%: 19.04 mm-H2O

Acoustical Noise

• At Duty Cycle 0~20%: 18 dBA
• At Duty Cycle 50%: 37.89 dBA
• At Duty Cycle 100%: 52.94 dBA

Lead Wir Pin Out

Pin1- (-)

Pin2- (+)

Pin3- (Techometer/Signal output)

Pin4- (PWM)

Life – Continuous operating under normal temperature (40 °C or 104 °F) 70,000 Hours
